Here are some technologies with low development efforts or not fully automated
Voici quelques technologies qui n'ont pas été très développées, ou qui ne sont pas entièrement automatisées


Odour / Odeur

You will find many documents speaking of body odor, but not many giving a link to a serious article... To my best knowledge, the article from Korotkaya is one of the best on this subject, with a bibliography.
On en parle beaucoup, mais avec peu de référence vers un article sérieux. Voici le meilleur article sur le sujet à ma connaissance, avec une bibliographie.

  • Biometric Person Authentication: Odor (Korotkaya) Lappeenranta University of Technology


  • A British company, Mastiff Electronic Systems Ltd., has worked on such a system using a sensor named Scentinel. The product is prohibitively expensive (about US$50,000) and still years away from commercial release. No information available on their website.
    Une entreprise britannique, Mastiff Electronic Systems Ltd., a travaillé sur un tel système en utilisant un capteur dénommé Scentinel. Le produit est extrêmement cher (environ 50k$), et à des années d'une version commercialisable. Aucune information disponible sur leur site web.


    Reflection of acoustic waves in the head
    Réflexion d'ondes acoustiques dans le crâne

    Developped by Dr. James Wayman for the DoD.
    Développé par le Dr James Wayman pour le département de la défense américain.


    Skin impedance
    Impédance de la peau

    One company has proposed to identify people using skin impedance. Still in R&D phase.
    Une compagnie a proposé de la reconnaissance utilisant l'impédance de la peau. Encore au niveau de la recherche.


    Knuckle creases
    Articulations

  • Knuckle crease patterns and stray marks as a means of photographic identification Richard W. Vorder Bruegge and David B. Davies, FBI Laboratory, Special Photographic Unit, Washington, D.C. USA
  • Jungbluth, William O., Knuckle print identification, Journal of Forensic Identification, 39 (6), 1988, 375-380. (no website)

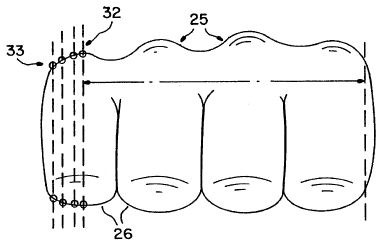

  • US patent 5,594,806 (Colbert, 1994) "Knuckle profile indentity verification system"
  • Brevet US 5,594,806 (Colbert)

    Finger wrinkles
    Plis du doigt

  • At the CTST '98, Toshiba + TEC demonstrated a system that measures finger wrinkles. The system uses electrostatic capacitance to measure wrinkles behind the two joints of a finger (no website).

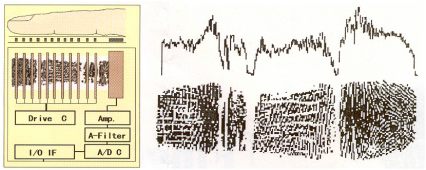

  • Sensorcapacitance measurement of wrinkles


    Hand pressure profile
    profil de pression de la main

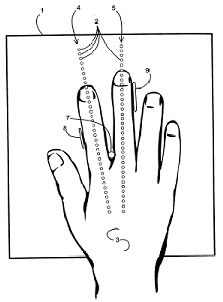

    The WO03069540 patent granted to Tactex proposes to identify persons using the pressure profile of the hand. No information on their website.
    Le brevet WO03069540 déposé par Tactex propose une identification grâce au profil de pression de la main. Aucune information disponible sur leur site web.

  • Tactex website
  • Brevet WO 0306450

    Dynamic Grip Recognition
    Poigne dynamique

    The US patent #6,563,940 granted to Michael Recce from the New Jersey Institute of Technology describes a behavioral biometrics called Dynamic Grip Recognition, primarily developed for guns.
    A users initially grips a handle containing pressure sensors, and a pressure signature profile is stored that is based on hand position of the user's handgrip on the particular device as indicated by a change in pressure, pressure as a function of position on the particular device; and pressure as a function of time. A comparator compiles the pressure signature profile and compares it with profiles is storage to determined whether a match exists. Upon finding a match, a control unit releases an interlocking unit to enable the user to operate the device because he/she is authorized.
    Le brevet US 6,563,940 accordé à Michael Recce du New Jersey Institute of Technology décrit une technique biométrique appelée "poigne dynamique" (je trouverai peut-être plus tard une meilleure traduction...).
    Elle est basée sur le profil de pression qu'exerce la main sur la crosse d'un révolver, et de la manière que cette pression est exercée dans le temps.

  • Press release from NJIT+Metal Storm+Taurus (end 2003)

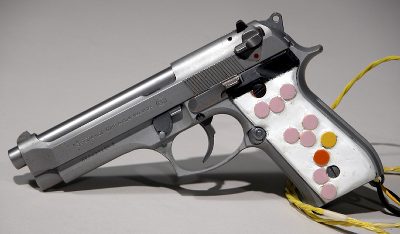

  • Dynamic Grip NJIT

    Bone sound transmission
    Transmission du son par les os

    Sony issued a patent (US 2003/0113001) where a speaker send a sound pulse in the finger, which is modified by the flesh and bone, and read with a microphone, enabling personal identification.
    Sony a publié un brevet où un haut-parleur envoie une impulsion sonore dans le doigt, qui est modifiée en traversant la chair et l'os, lue avec un microphone, ce qui permettrait l'identification des individus.


    Bioelectric field
    Champ bioélectrique

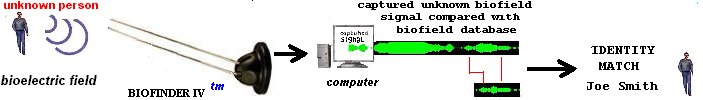

    "BIOFINDER II detects the bioelectric fields of people. Bioelectric fields are biological passwords allowing direct identification of individuals via their invisible bioelectric fields. Since bioelectric fields are Mother Nature’s built-in identification systems, they are impossible to duplicate and always unique to each individual as DNA."
    "BIOFINDER II détecte le champ électrique des gens. Les champs bioélectriques sont des mots de passe permettant l'identification directe d'individus en utilisant leur champ bioélectrique invisible. Comme les champs bioélectriques sont des systèmes d'identification intégrés par Dame Nature, ils sont impossibles à copier et toujours uniques à l'instar de l'ADN."

  • Biofinder
  • (This was directly extracted from this website. Hard to believe.
    C'est un extrait de ce site web. Difficile à croire.)


    Eye movement tracking
    Movement de l'oeil

    The Silesian University of Technology, Institute of Computer Science, proposes to recognize persons using the eye movement when following a target on a computer screen. Special glasses are required, using infrared light, to measure the eye moves.
    L'université de technologie de Silésie propose de reconnaître les gens grâce aux saccades de l'oeil lorsqu'il suit une cible sur un écran. Une paire de lunette spéciale est requise pour mesurer ces mouvements.

  • Eye Movement Measurement System

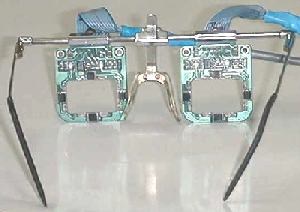

  • Ober2 googles

    Corneal surface topography
    Topographie de la surface de la cornée

    A small, low power, infrared light emitting diode (LED) located at the center of the camera lens illuminates the eye. The LED generates the corneal reflection and causes the bright pupil effect, which enhances the camera's image of the pupil.
    Une petite DEL infrarouge située au centre de la lentille de la caméra éclaire l'oeil. La réflexion de la lumière crée l'effet "yeux rouges", ce qui améliore l'image de la pupille.

  • (2004) LC Technologies proposes the Eyegaze system.


  • cornea corneal map
    infrared camera

    3D Finger surface
    Topographie de la surface du doigt

    Uses the curvature of each small section of the finger surface, starting from a normal image.
    Utilise la courbure de la surface du doigt en chaque point, à partir d'une photo normale.

  • (2004) University of Notre Dame / Computer Vision Research Laboratory: search for Damon Woodard, 3D Finger recognition.
  • Finger curvature segmented into regions
